Description
The Panasonic CR1616 is a compact 3V lithium coin cell designed for compatible electronic devices requiring a thin, reliable power source.
Panasonic specifies the CR1616 with a nominal voltage of 3V, nominal capacity of 55mAh and standard continuous drain of 0.1mA. The cell measures approximately 16.0mm in diameter and 1.6mm in height, with a weight of approximately 1g.
Its lithium manganese-dioxide chemistry provides stable power in a compact form factor, making CR1616 batteries particularly useful in small electronic equipment where space is limited.

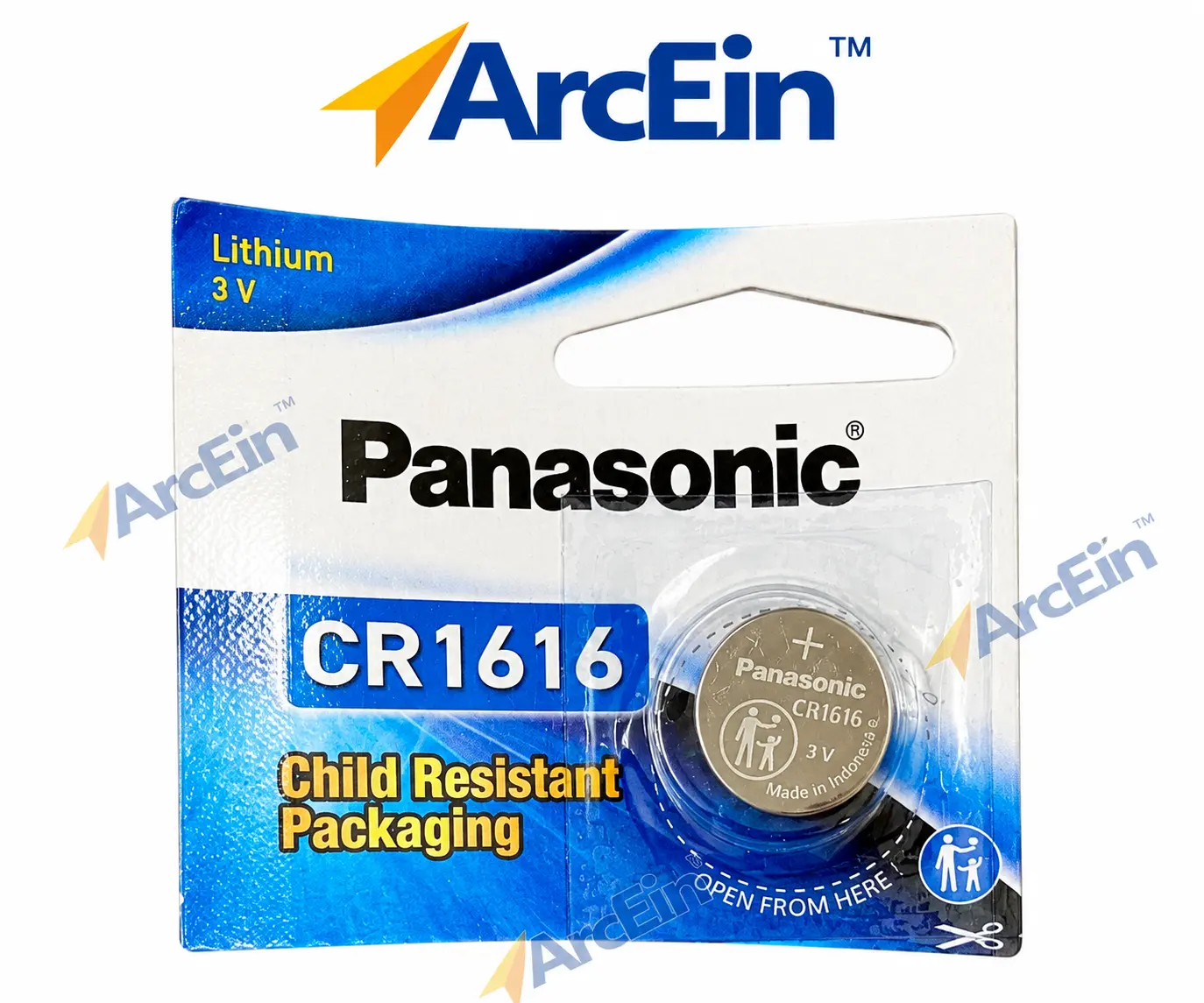

The ArcEin stock shown is supplied in Panasonic child-resistant retail packaging. Panasonic states that its child-resistant coin-battery packaging is designed to reduce the risk of accidental ingestion.
Common Applications
Panasonic identifies CR1616 applications including remote keyless-entry systems, card remote controls, memory backup, security price tags and smart transmitter tags.
For the ArcEin page, use:
- Car key fobs requiring CR1616
- Remote keyless-entry systems
- Card remote controls
- Memory backup
- Security price tags
- Smart transmitter tags
- Compact electronic devices
- Small sensors
- Other equipment specifically designed for CR1616 batteries
Compatibility / Cross Reference
Panasonic’s cross-reference information lists equivalents including ECR1616, DL1616, KECR1616 and CR1616 from various manufacturers.
Important: Always check the battery number specified by your device manufacturer before ordering.
CR1616 vs CR1620 vs CR1632
These batteries all have approximately the same 16mm diameter, but they have different thicknesses:
CR1616: 1.6mm
CR1620: 2.0mm
CR1632: 3.2mm
They should therefore not be treated as automatically interchangeable, even though all three are nominally 3V.
Safety Information
CR1616 is a non-rechargeable lithium battery. Do not recharge.
Do not short-circuit, dismantle, crush, puncture or expose the battery to fire or excessive heat.
Keep coin batteries away from children. Panasonic warns that swallowed coin batteries can cause serious injury and require immediate medical attention.
